WÖHR PARKLIFT 421

Three-Level Car Parking System. The Favorite. The Best Seller.

WÖHR PARKLIFT 421
parklift 421

800-727-5325

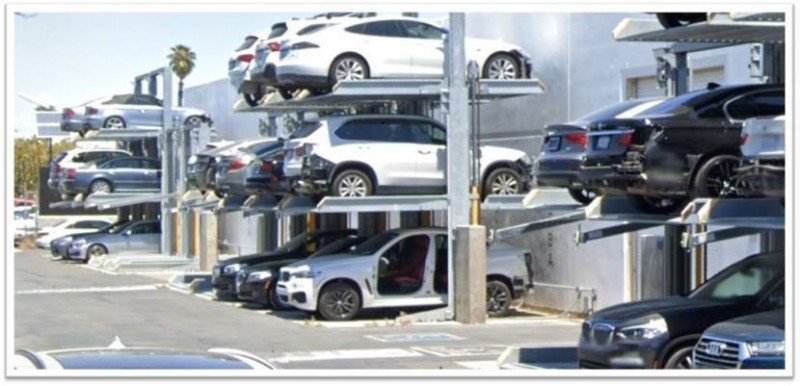

The Harding Autopark Systems’ Hydraulic Parklift is the most popular product in the American parking lift industry. This hydraulic car parking lift system replaces the historic Harding Steel SUV-LIFT, our legacy system in the industry. The Parklift is an innovative machine that is designed to accommodate an expansive array of vehicles including SUVs, crossovers, sedans, collector cars, and exotic vehicles. No matter the car you need to park, our hydraulic car parking systems can work for you. This two-level car parking system effectively doubles the available parking space used in one location, saving you room for your parking areas.

The Parklift is designed and engineered in Germany for the highest quality and performance standards.

These hydraulic car parking lift systems operate in both outdoor and indoor locations and are particularly well suited for high-humidity or damp locations. All Parklift models can be configured for drive-through and tandem parking applications. Our Parklift s can be utilized in areas where ceiling clearances are as low as 10'6".  Recommended heights for future-proofed car clearance is 12’6” or greater. For more information on our two-level car parking systems, the Wöhr Parklift, get in touch with us today.

Our Parklift hydraulic car parking lifts comprise 60% of our total sales and installations. Harding Steel specifically designed these two-level car parking systems with the needs of real estate developers, architects, engineers, automotive dealers, and commercial parking operators in mind.




FEATURES

  • 100% galvanized steel construction

  • Commercial grade design and materials

  • Hydraulic two-stage cylinders

  • Self-standing, self-supporting unit

  • Can be moved or relocated

  • Central or individual hydraulic power pack

  • Solid platform prevents dripping from upper level

CAPABILITIES

  • Working Capacity 6,000 lbs.

  • Static Capacity 12,000 lbs.

  • Dynamic Capacity 9,000 lbs.

DIMENSIONS

  • Overall Width 96”up to 104”

  • Platform Width 83”up to 91”

  • Drive-thru Width 88”up to 96”

  • Overall Platform Length 177”

  • Maximum vehicle wheelbase 146”

  • Maximum clearance (lower car) 80”

  • Overall height 10”6” up to 14’

POWER REQUIREMENTS

  • 208V 3 Phase 40 amp

  • 220V Single Phase 40 amp

  • 110V Single Phase 30 amp

WARRANTY

1 year parts and labor.



contact us today to see how we can create a solution for your project.

800-727-5325
